Heatit Z-Din 616

https://www.emarketkw.com/web/image/product.template/28065/image_1920?unique=e73799f
(0 review)

66.600 KD 66.6 KWD 66.600 KD VAT Excluded

66.600 KD VAT Excluded

Not Available For Sale


  • Brand

This combination does not exist.


SKU :
Z-Din 616
Share :

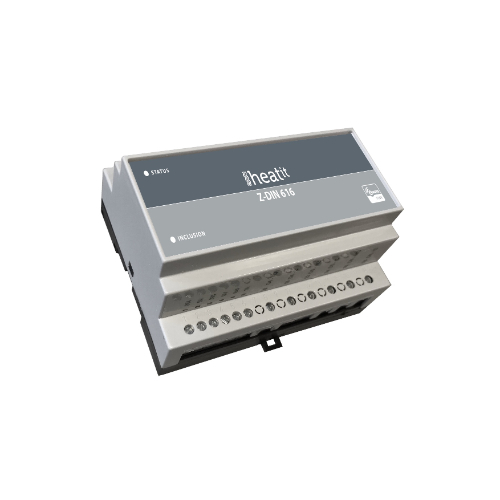

Heatit Z-Din 616

"Heatit Z-DIN 616 is a 6 x 16A potential free relays for DIN rail mounting. The module is equipped with 6 relay switches and 6 digital inputs for mounting on a standard M36 DIN rail (EN50022).


The 6 independent relay switches of the Heatit Z-DIN 616 can freely be controlled from the Z-Wave network and be used for many different purposes.


All 6 relay switches are galvanically isolated from each other. and may be used for controlling AC and/or DC loads. Each relay switch is rated for loads of up to a maximum of 16A.


The 6 digital inputs can be connected to dry contacts, e.g., limit switches, door/window contacts, or pushbuttons. Another option is to connect them to open-collector outputs from discrete sensors, e.g., PIR sensors. The 6 inputs of the Heatit Z-DIN 616 may also function as a scene controller and activate predefined scenes in other Z-Wave devices or controllers (by transmitting Central Scene notifications).


The Heatit Z-DIN 616 is supplied from a 10 – 24Vdc power supply. Initiation of Z-Wave inclusion and exclusion is executed by activating a push-button through a little hole in the front of the module. The Heatit Z-DIN 616 is equipped with a LED in the front of the module for different kinds of status indications."







Brand Heatit
